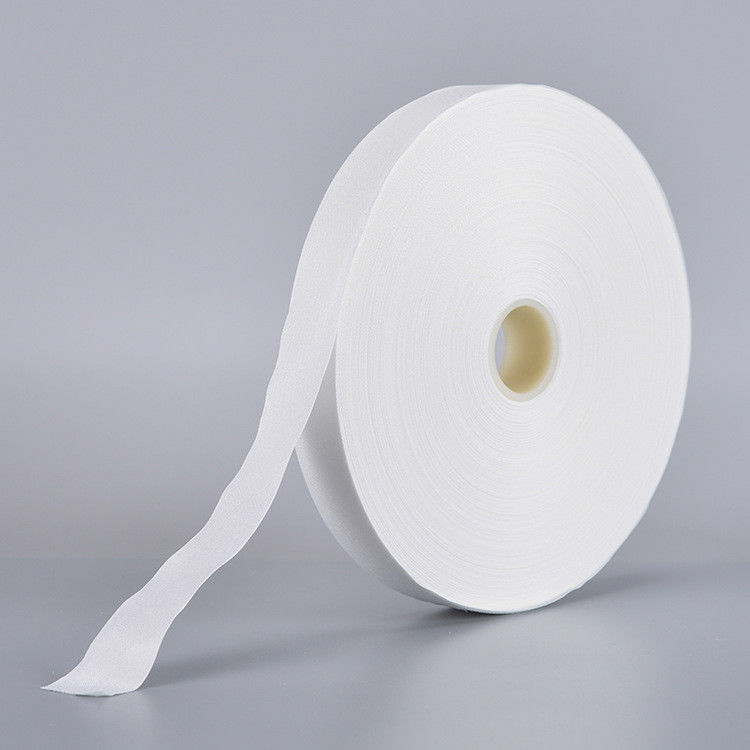

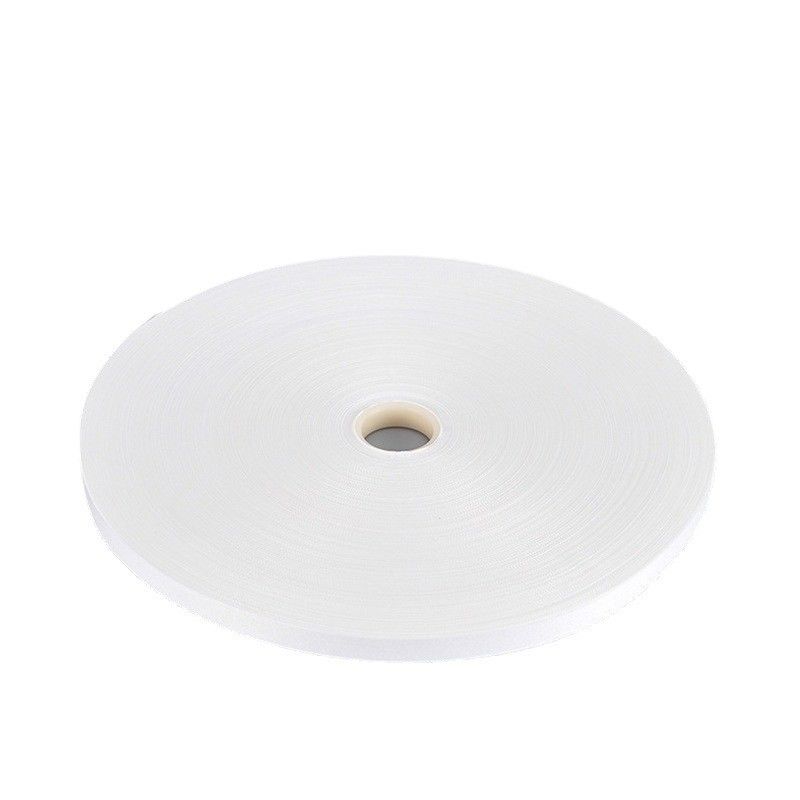

Factory Wipers Ultrasonic Cut 180gsm Microfiber Cleaning Cloth In Roll For Lcd Port Cleaning
Application:
◊ SMT Production Line
◊ Production line for Semiconducor Assembling
◊ Disk Driver
◊ Composite Material
◊ Precision Instrument
◊ Aviation Industry
◊ PCB Products
◊ Medicine Equipment
◊ Labs
Specification:
| item | value |
| Product Name | Microfiber Wiper Rolls |
| Material | 100% polyester fiber, Microfiber Knitted, Microfiber Woven (Microfiber is 80% polyester+20% nylon) |
| Knitted Weight | 160g,180g,200g,220g |
| Style | plain,twill or random |
| Size | Width:7mm-1.65m;Length:10M-500M can be customized |
| Shaft inner diameter | Conventional10MM,25.4MM,41.6MM,51.5MM,76.5MM can be customized |
| Edge sealing method | Hot cutting, ultrasonic |
| Applicable | Used for terminal cleaning, LED industry, LCM liquid crystal display module, micro motor cleaning belt, optoelectronic industry, TFT,wafer, lithium battery industry, etc. |
| clean class | 10000-1000 |
Technical Data:
| Attribute;(units) | Value | Test Method |
| Basis weight; nominal(g/m2) | 112 | MSD-QI-QS-007 A0 |
| Absorbency in water | IEST-RP-CC004.3 | |
| Intrinsic;(mL/g) | 2.51 | |
| Extrinsic;(mL/m2) | 301.73 | |
| Sorptive rate;(seconds) | 1 | EST-RP-CC004.3 |
| Non-volatile residue, NVR | EST-RP-CC004.3 | |
| In deionized water;(g/m2) | 0.010 | |
| In isopropanol;(g/m2) | 0.012 | |
| Specific ions | IEST-RP-CC004.3 | |
| Sodium;(ppm) | 0.023 | |
| Chloride,(ppm) | 0.081 | |
| Potassium;(ppm) | 0.079 | |
| Particles,readily releasable |
Feature:
1. This product is made of high-quality microfiber material, which has high absorption and high wear resistance.
2. It has good flexibility, strong tensile resistance, and will not scratch the surface of the object to be cleaned.
3. High cleanliness, low residue, low ion pollution, strong decontamination ability, etc.
4. The size is flexible and can be customized according to customer requirements.
5. The cloth surface is flat, the axis is solid, and the ultrasonic edge sealing does not drop chips. It is a cleaning consumable that perfect be used in TFT automation engineering.
6. Microfiber wiper is soft and delicate, and has strong decontamination ability. It has a strong ability to remove oil stains such as fingerprints and powder-type dirt, especially for the COG process of the LCD industry.
Our products are sold all over the world, you can rest assured.
